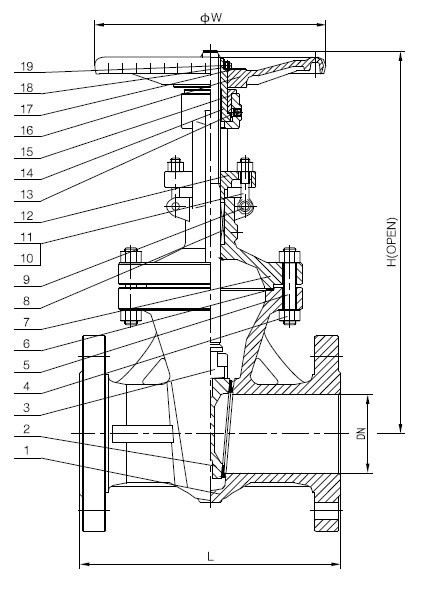

DIN Gate Valve
Short Description:
Product name:DIN Gate Valve
Size:DN40-DN1200
Pressure: PN16, PN25, PN40, PN63(64), PN100, PN160, PN250, PN320, PN400
Material:WCB, LCB,LCC, WC6,WC9, C5,C12,C12A, CF8, CF8M, CF3, CF3M, CN7M,Alloy 20,B148,UB6 ,Hastelloy C etc
Connection:Flanges,RTJ Flange,Butt Weld,Hub end,Groove
Driving manner:Handwheel, Wormgear, Gearbox, Pneumatic Actuator,
Suitable Medium: Water,Oil,Sewage etc.
Product name:DIN Gate Valve
Feature:
1.OS&Y Outside Screw and Yoke,BB Bolted Bonnet and Pressure Sealed Type
2.Solid, Flexible or Split Wedge Design
3.Rising stem or Non-rising stem
4.Back-seating, Renewable Seat Ring
5.Full Port Or Reduced Bore
6.Optional Upset forged T-head Stem Design
Standard:
1.Design and Manufacture: DIN 3352
2.Face to face(end to end): DIN 3202 F4/F5/F7/F12,EN558-1
3.End Connection: DIN 2543, DIN 2544, DIN 2545, EN1092-1
4.Test and inspection: DIN3230,EN12266-1
